Steel Grille Plate

Steel grating is also called steel grating. The grating is a steel product made of flat steel arranged crosswise with horizontal bars at certain intervals and welded into a square grid in the middle. It is mainly used to make ditch covers. , steel structure platform plates, steel ladder treads, etc. The cross bars are generally made of twisted square steel.

Classification :

Section steel

+86 18865297810

hjsteels@hjsteels.cn

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product Description

Parameter

Product name	Steel grille plate
Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1"x3/16", 11/4"{x3/16", 11/2"x3/16", 1"x1/4", 11/4"x1/4", 11/2"x1/4", 1"x1/8", 11/4"x1/8", 11/2"x1/8" etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment	Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing	(1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.

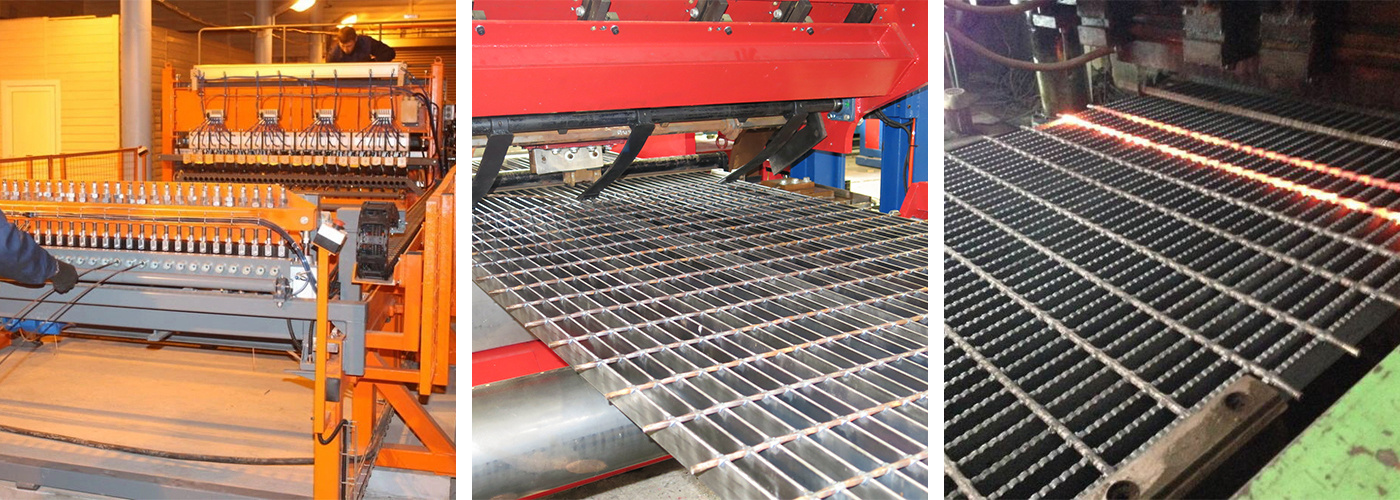

Factory description

1. The pressure-welded steel grating plate is made of load-bearing flat steel and cross bars arranged at a certain distance and welded into the original plate using 200 tons of hydraulic resistance welding automation equipment. It is processed by cutting, drilling, hemming and other processes to meet customer requirements. The product.
2. Spacing between loaded flat steels: the center distance between two adjacent loaded flat steels, commonly used are 30MM and 40MM.
3. Crossbar spacing: The center spacing between two adjacent crossbars is usually 50MM or 100MM, and can be produced according to customer requirements.
4. Various types of steel gratings can be customized according to customer requirements.

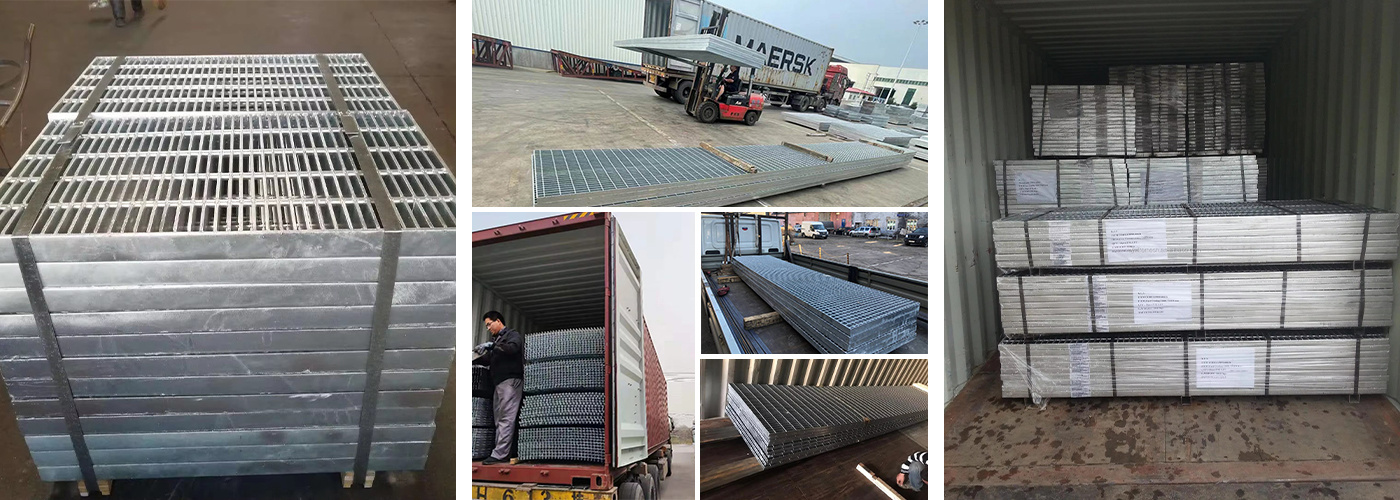

Shipping Packaging

products are sold all over the country and Europe, America, the Middle East, Africa and Southeast Asia and other global more than 100 countries,and the world's top 500 enterprises to establish a deep cooperative relationship, well received by customers.

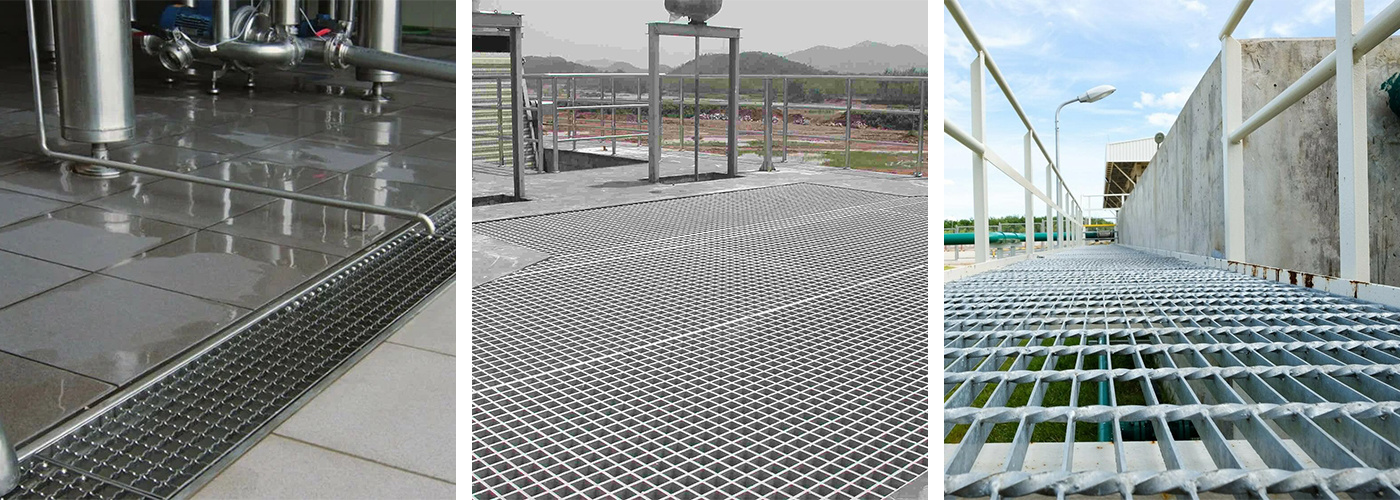

Application description:

Widely used in platforms, walkways, trestles, trench covers, manhole covers, ladders, fences, factories in the fields of petrochemical industry, electric power, tap water, sewage treatment, ports and terminals, building decoration, shipbuilding, self-propelled parking lots, municipal engineering, sanitation projects, etc. Construction etc.

Cooperation and exchange

COOPERATIVE PARTNER

FAQ

Q：I want a specific size or color. Can I get customized?
A：Yes. Customization is available. You can choose the color or pattern, size (length, width, thickness, weight, etc.), paints, shape, etc. We offer coils and sheets, as well as further processing services, such as logo printing, etc. Please send us your requirements, we will meet your requirements.
Q: Are we a trader or a manufacturer?
A: We are a manufacturer and have our own factory.
Q: How to pack?
A: Can be packaged according to customer's needs
Q: How long is your delivery time?
A: If the goods are in stock, generally 5-10 days. Or 15-20 days if the goods are not in stock, according to the quantity.
